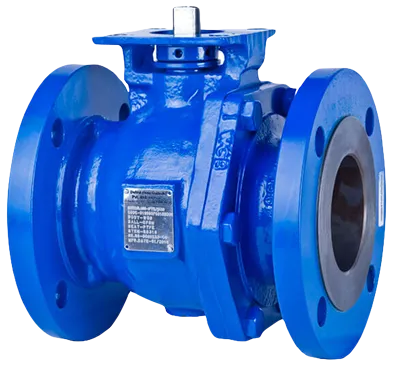

Ball Valves
Engineered for absolute isolation, our ball valves maintain reliable sealing and smooth operation even under demanding conditions. Tested to deliver consistent performance for uninterrupted flow and absolute reliability with zero downtime.
Select Series- Description
- Features
- Certifications

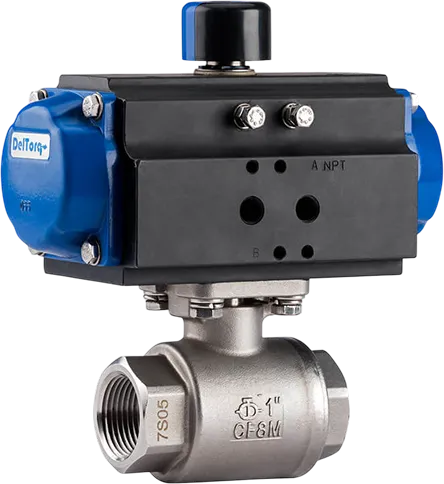

Series 2000 Shut Down Valve
Description
Collapse allBody Type
ThreadedBody
SSBall
SSBody
SSStem
SSSeat
RTFESize Range
1/2”, 1”, 2”Pressure Rating
2000 psiDesign Standard
API 608, ASME B16.34Testing Standard
API 598Features
2000 PSIG WOG
Integral top plate for direct mount actuation
Top plate is open for leak detection
Seal welded CF8M body
Full port/threaded ends
Key Specs
316SS
316SS ball & stem
Blowout proof
Blowout proof stem/floating ball
Packing
Adjustable packing
1/2
Available sizes in 1/2
API 607, 6th edition
Fire tested & certified to API 607, 6th edition
ANSI/NACE MR0175/ISO15156
Conforms to ANSI/NACE MR0175/ISO15156 specifications
Certifications
API 6D for Ball Valves
ATEX 2014-34-EU for Valves and Actuators
CRN Series 65-72 Floating Ball Valves
NSF-61 & 372 Series 64, 65/66, 69/70, 73/74, 75/76 & 78 Ball Valves
PED Module H for Ball Valves and Butterfly Valves
SIL3 FBV Series 65-72 & Series F
TR-CU-032-Certificate for Ball Valves and Butterfly Valves
TR-CU-Declaration
